ORAFOL ORALITE® V98 Pre-Striped Chevron Prismatic Reflective Sheeting

ORAFOL ORALITE® V98 Pre-Striped Chevron Prismatic Reflective Sheeting

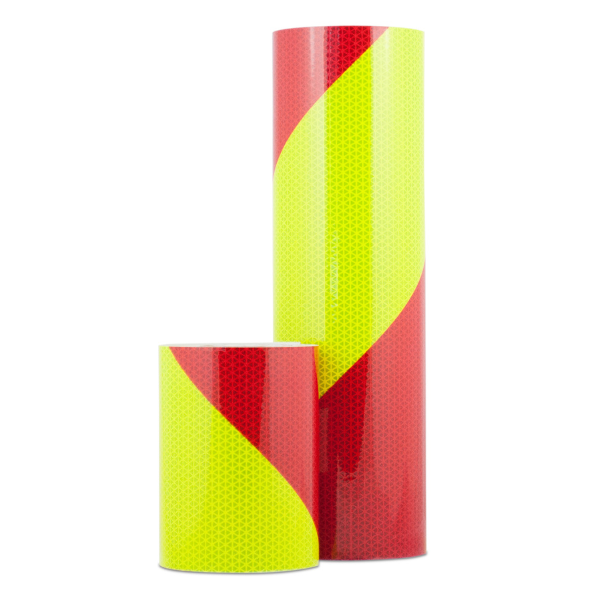

ORAFOL ORALITE® V98 Conformable Pre-Striped Chevron sheeting is a pre-striped fluorescent lime / red in the chevron pattern eliminating the need for piecing sheeting. The prismatic reflective sheeting is designed for vehicles that require increased visibility such as fire, EMS, police, utility, telecom and DOT. The material is plotter cuttable and easy to apply to smooth painted or unpainted vehicle surfaces. The sheeting has superior conformability and exceptional impact resistance. The single layer product does not require edge sealing, and is applicator friendly with high-tack pressure sensitive adhesive with a release liner. The Conformable Chevron Sheeting is available in Left-Hand and Right-Hand configurations. The sheeting meets and exceeds the requirements of NFPA 1901 and ASTM D4956.

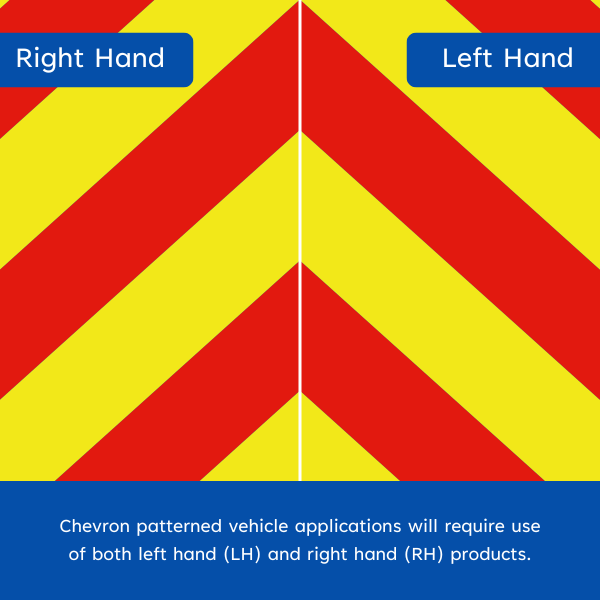

*Most Chevron patterned vehicle applications will require use of both Left-Hand (LH) and Right-Hand (RH) product.*

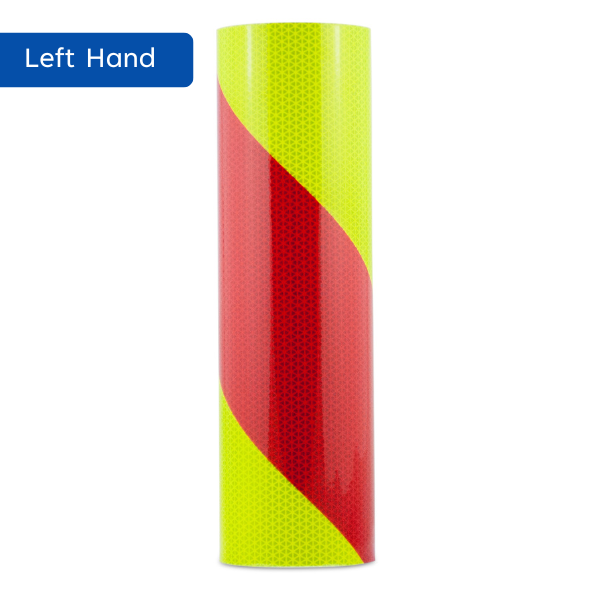

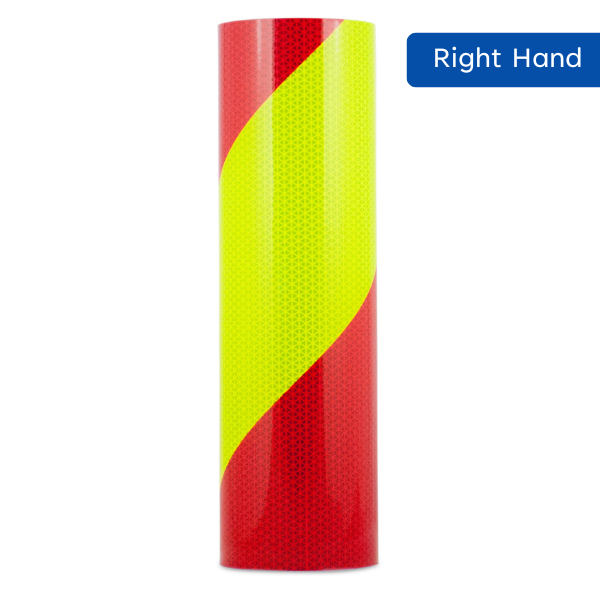

*The Right-Hand is installed on the left side of the vehicle with the stripes pointing up toward the right. The Left-hand is installed on the right side of the vehicle with the stripes pointing up toward the left.*

Product information:

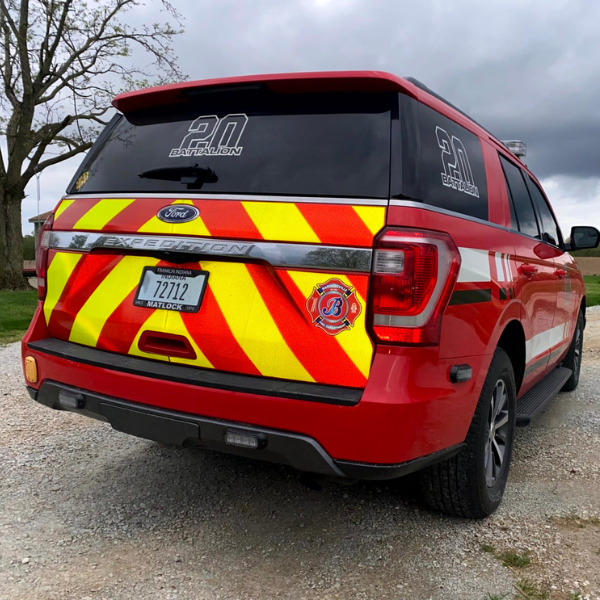

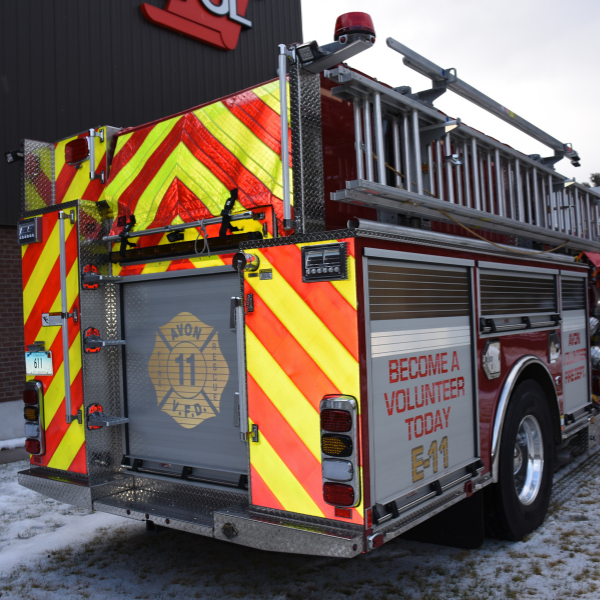

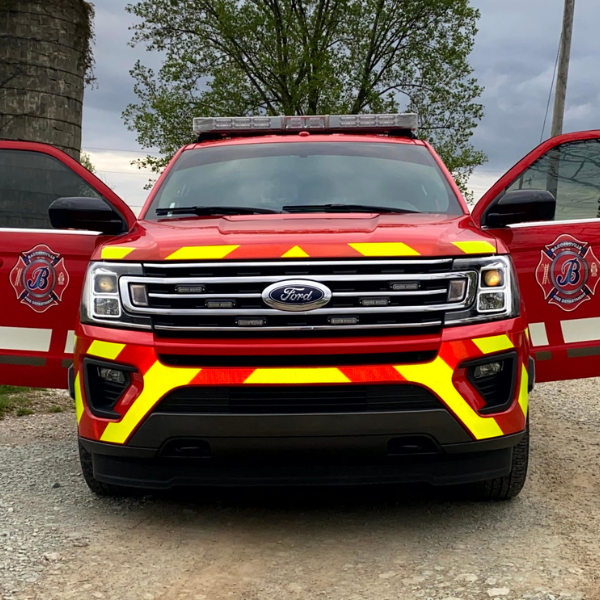

  • Ideal for vehicles that require increased visibility such as utility, telecom, DOT, fire, EMS, and police vehicles
  • Meets and exceeds the requirements of NFPA 1901 and ASTM D4956
  • High-tack pressure sensitive adhesive with release liner for ease of application
  • Superior conformability, perfect for complex curves, rivets, and corrugations
  • Prismatic Retroreflective Performance for enhanced long-distance visibility
  • No edge sealing required, withstands high pressure washing and resists edge lift due to mono-layered construction
  • Exceptional impact resistance and maintains reflectivity after impact
  • Plotter cuttable and easy to apply to smooth painted or unpainted vehicle surfaces
  • Sheeting must be applied when the air and surface temperature is 65°F or above
  • Available in Left-Hand and Right-Hand configurations
  • 5-Year Warranty
